The characteristics and maintenance of clean transfer window

In highly controlled environments such as pharmaceuticals, biotechnology, microelectronics, and advanced research, maintaining clean air quality is the primary goal of the entire cleanroom system. Preventing even the smallest particles or microbial contamination ensures the safety of equipment and products. Within the entire cleanroom system, there is one piece of equipment that is often overlooked: the clean transfer window, yet it is critical to contamination control. The proper functioning of clean transfer window depends on a set of specific characteristics and a strict maintenance program.

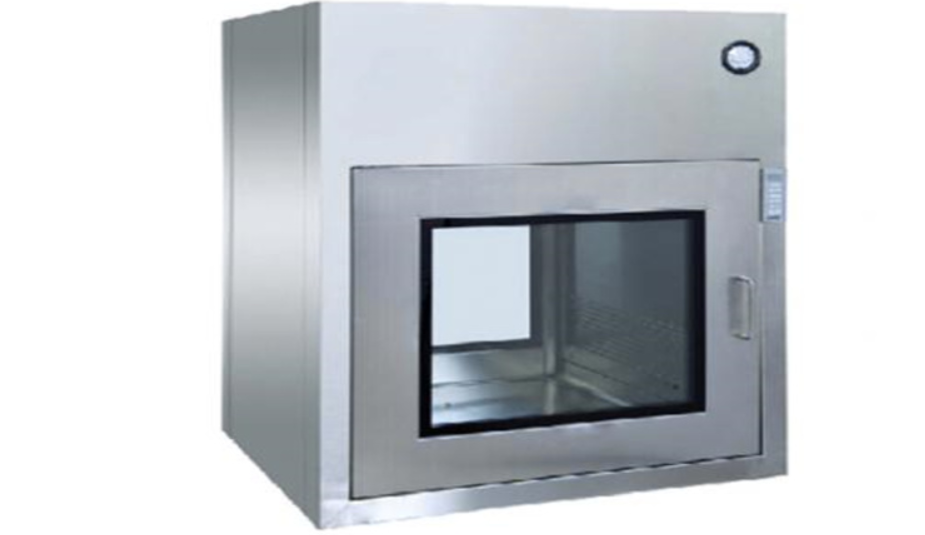

Characteristics of a Clean Transfer Window

A clean transfer window is much more than a simple cabinet with two doors. It is a carefully designed chamber that allows objects to move between areas of different cleanliness levels (e.g., from a Class C corridor into a Class A cleanroom) without compromising the atmospheric integrity of either space. Its main features include:

• Clean materials: The interior of clean transfer windows is typically made of 304 or 316 grade stainless steel, chosen for its non-shedding, non-porous, and easy-to-clean surface. All welds must be continuous and smooth to eliminate contaminant residue and facilitate cleaning.
• Air-tight sealing: The entire clean transfer window assembly is sealed to ensure isolation between different cleanliness levels. This is achieved through high-quality gaskets and seals on both doors, which are typically made of silicone or ethylene propylene diene monomer (EPDM) rubber due to their durability and resistance to chemical corrosion. Both doors are equipped with mechanical or electronic interlocks to ensure that only one door can be opened at a time. This critical safety feature prevents direct air exchange between the two connected environments.
• High-Efficiency Particulate Air (HEPA) Filter: The core of the pass-through window is its filtration system. A dedicated blower forces air through a HEPA filter, which is certified to remove at least 99.97% of particles as small as 0.3 microns. This creates a unidirectional vertical laminar airflow within the chamber, eliminating any particles generated during the transfer process. Some applications with the most stringent standards may even use ultra-low penetration air (ULPA) filters.
• Strict transfer mechanism: Many clean transfer windows are equipped with UV-C germicidal lamps. These lamps are usually interlocked and only activated when both doors are closed, disinfecting the interior of the chamber and the surfaces of items left inside, killing bacteria, viruses, and other microorganisms. They are also equipped with timers to ensure sufficient exposure time and protect operators from harmful ultraviolet radiation.
• Monitoring and control: Most clean transfer windows are now equipped with digital control panels. These panels allow operators to monitor the status of pre-filters and high-efficiency particulate air (HEPA) filters, control fan speed, set UV timer cycles, and receive door interlock failure or filter problem alerts, thereby providing verifiable compliance data.

Daily maintenance of clean transfer window

The precision characteristics of clean transfer windows still require daily maintenance. Neglecting maintenance can lead to filter clogging, decreased sealing performance, and ultimately contamination incidents.

Daily and weekly cleaning

Appropriate cleanroom-grade disinfectants and wipes (e.g., 70% sterile isopropyl alcohol (IPA)) must be used to clean interior surfaces frequently. Strict cleaning standard operating procedures (SOPs) should be followed to ensure that all surfaces (walls, floors, and interior sides of doors) are wiped clean to remove any particulate matter. UV-C lamps should also be regularly wiped clean, as dust accumulation on the lamp housing can significantly reduce their disinfection effectiveness.

Regularly replace filters

Filters are consumables. HEPA pre-filters should be inspected weekly and replaced every 1–3 months depending on the environment. The main HEPA filter has a longer lifespan but must undergo an integrity test every 6 to 12 months. If the pressure gauge or control panel indicates a decrease in airflow velocity or an increase in pressure differential, this indicates that replacement is necessary. Replacing the HEPA filter is a critical process that typically requires professional technicians to avoid self-contamination.

Gasket integrity check

Door seals are a physical barrier that prevents cross-contamination. Visually inspect the door seals daily for any signs of cracking, tearing, or permanent deformation. A simple and effective test method is the “dollar bill test” — cover the door with a dollar bill (or similar piece of paper) and then pull it out; if there is little or no resistance, the seal may be damaged and needs to be replaced.

Mechanical and functional testing

Door interlock devices must be tested regularly to ensure that it is physically impossible to open two doors at the same time. The operation of UV-C lamp interlock devices should also be verified to ensure that they only function normally under safe conditions. Fan motors and bearings should be checked for abnormal noise and vibration, which are early signs of impending failure.

In summary, clean transfer windows may seem simple, but they are a critical component of any contamination control strategy. However, through continuous maintenance during daily operations to ensure the normal functioning of the equipment, this passive passageway can be transformed into an active guardian, ensuring the safe and reliable transfer of materials and maintaining the integrity of the critical environment to which it is connected.
